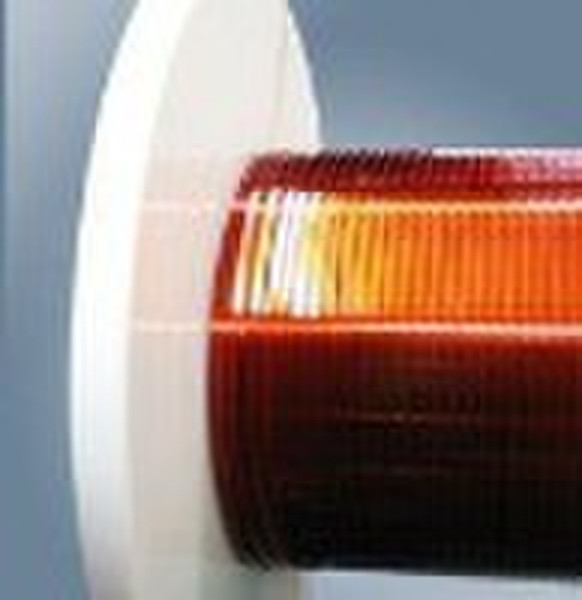

Enameled copper wire

Enameled Flat Wire Product Introduction: enameled wire are the most extensive use of wire insulation. Huadian adopt the most advanced equipment and technology, the implementation of the entire NC enamelled craft production, one of temperature control accuracy of 1 °C, up to 12 micron paint coating process and mold, to ensure that the fine enameled wire, uniform the quality of electrical windings are reliable choices. Enamelled flat line Specifications Table FORMVEXTENVEH HTENVEX 200TENVEX 220INVEX ML*FORMICEMENTEXCorresponds to the international modelsQQB-1/120,QQB-2/120,QQ-1/120,QQ-2/120QZBY-1/180,QXBY-2/180,QZY-1/180,QZY-2/180Q(ZY/XY)B-1/200,Q(ZY/XY)B-2/200,Q(ZY/XY)-1/200, Q(ZY/XY)-2/200QYB-1/220 QYB-2/220 QY-1/220 QY-2/220Temperature index120(B)180(H)200(C)220(C)240(C)120Insulation chemical compositionAcetalPolyester-imidePolyester-imide / polyamide-imidePolyimideAromatic polyimideSelf-adhesive epoxy acetalCharacteristics and usesFor oil-immersed transformer windings. Around the system with excellent performance, high mechanical strength, elastic resilience, and resistance to hot red best performance characteristics of transformer oil.180 for electrical windings. Because of the special resin as a primer, so that flat line with a unique winding resistance properties, good adhesion characteristics.Production of 200 are the best choice of electrical windings for motors, dry-type transformers and nuclear power systems. Excellent winding and transformer oil in the anti-aging properties.High mechanical strength, has excellent heat resistance, chemical resistance, resistance of refrigerant. Widely used in the automotive industry for the alpine radiation-resistant, super-load conditions used in motors, electrical windings.Applicable to heat-class occasions, electric resistance, chemical resistance, and especially for military, nuclear industry and space.Used in the heat treatment required during the self-adhesive power transformer windings, and a very good performance transformer oil resistant.Thermal Propertiesthermal shock test: 180 °C, softening temperature 240 °C BreakdownTgδ Test: 180 °C, thermal shock test: 200 °C, softening temperature 300 °C Breakdowntgδ Test: 200 °C, thermal shock test: 200 °C, softening temperature 350 °C Breakdowntgδ Test: 200 °C, thermal shock test: 240 °C, softening temperature 360 °C Breakdowntgδ Test: 240 °C, thermal shock test: 260 °C, softening temperature 450 °C Breakdowntgδ Test: 130 °C, thermal shock test: 180 °C, 110 °C 48h or 120 °C 24h after heat treatment a good self-adhesive* Please ask us about
